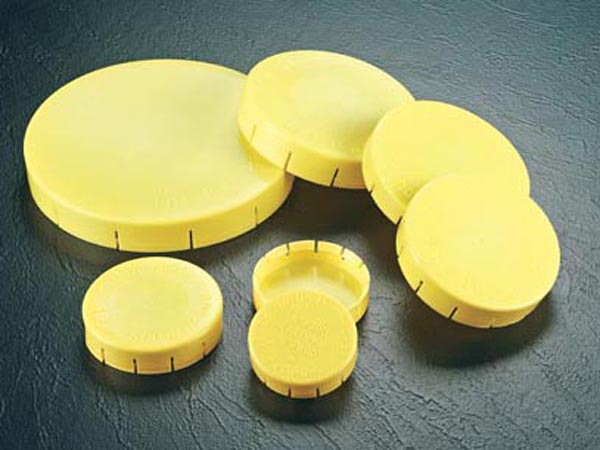

EPN310 Series
Outside Fitting Protectors
Pushes on to cover the entire flange and protect the face and sides. Ideal for coated and conical bore flanges.
- Covers full face of the flange
- Bright yellow for easy recognition
- ANSI B 16.5
Material: Linear low-density polyethylene
Standard Color: Yellow
| Item # | Dim A (IN) | Dim C (IN) | To Cover Flange Dash Size (IN) | |
|---|---|---|---|---|
| EPN-310-0500A | 3.50 | .56 | 150-1/2 | |
| EPN-310-0750A | 3.88 | .67 | 150-3/4 | |
| EPN-310-1A | 4.25 | .69 | 150-1 | |
| EPN-310-1500A | 5.00 | .81 | 150-1-1/2 | |
| EPN-310-2A | 6.00 | .87 | 150-2 | |
| EPN-310-3A | 7.50 | 1.06 | 150-3 | |
| EPN-310-4A | 9.00 | 1.10 | 150-4 | |
| EPN-310-6A | 11.00 | 1.14 | 150-6 | |
| EPN-310-10A | 16.00 | 1.18 | 150-10 | |
| EPN-310-0500B | 3.74 | .56 | 300-1/2 | |
| EPN-310-1B | 4.88 | .81 | 300-1 | |
| EPN-310-2B | 6.50 | .83 | 300-2 | |
| EPN-310-0500C | 3.74 | .67 | 600-1/2 | |
| EPN-310-1C | 4.88 | .81 | 600-1 | |
